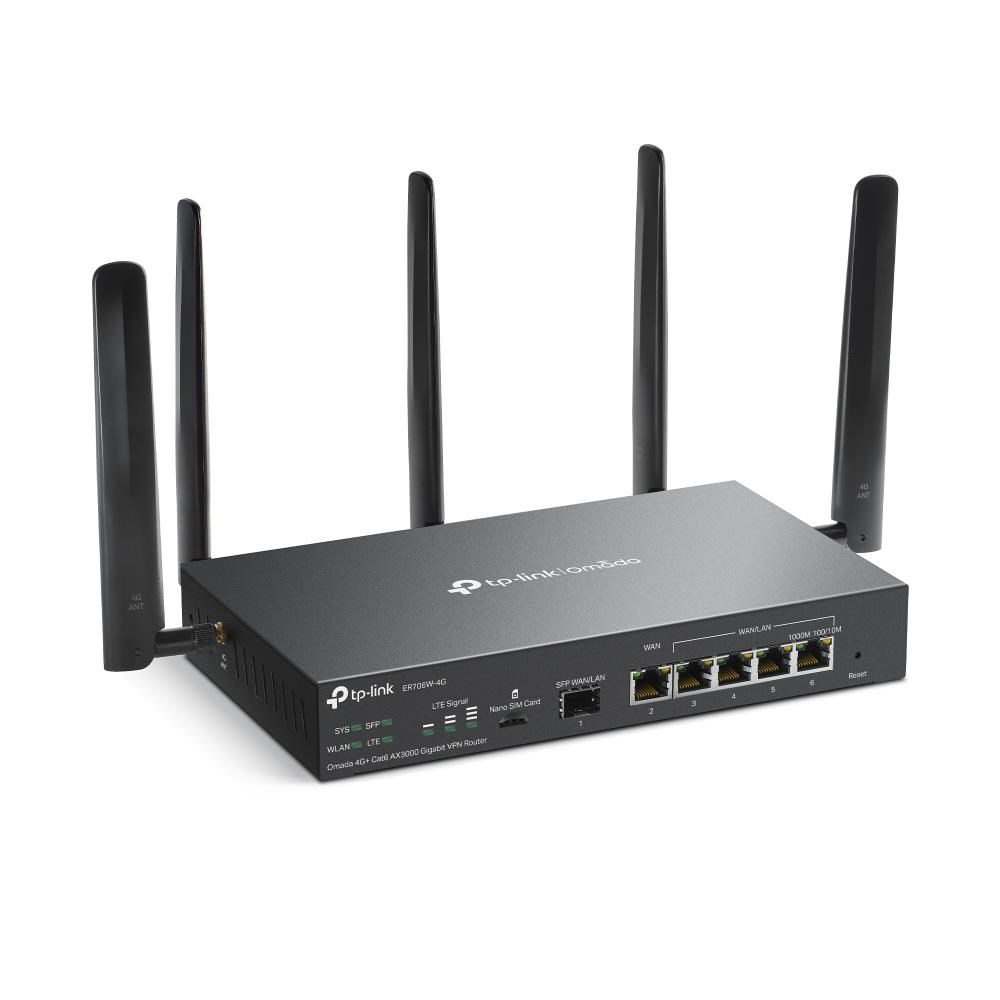

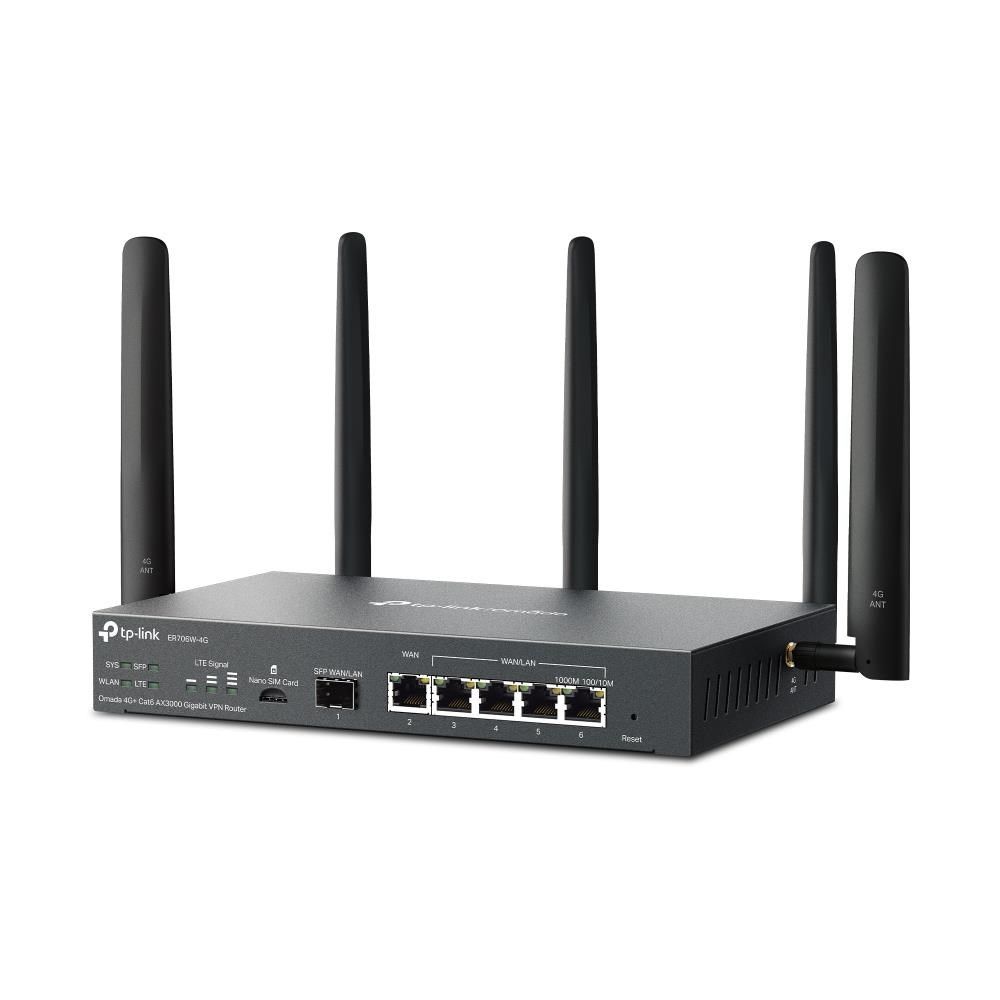

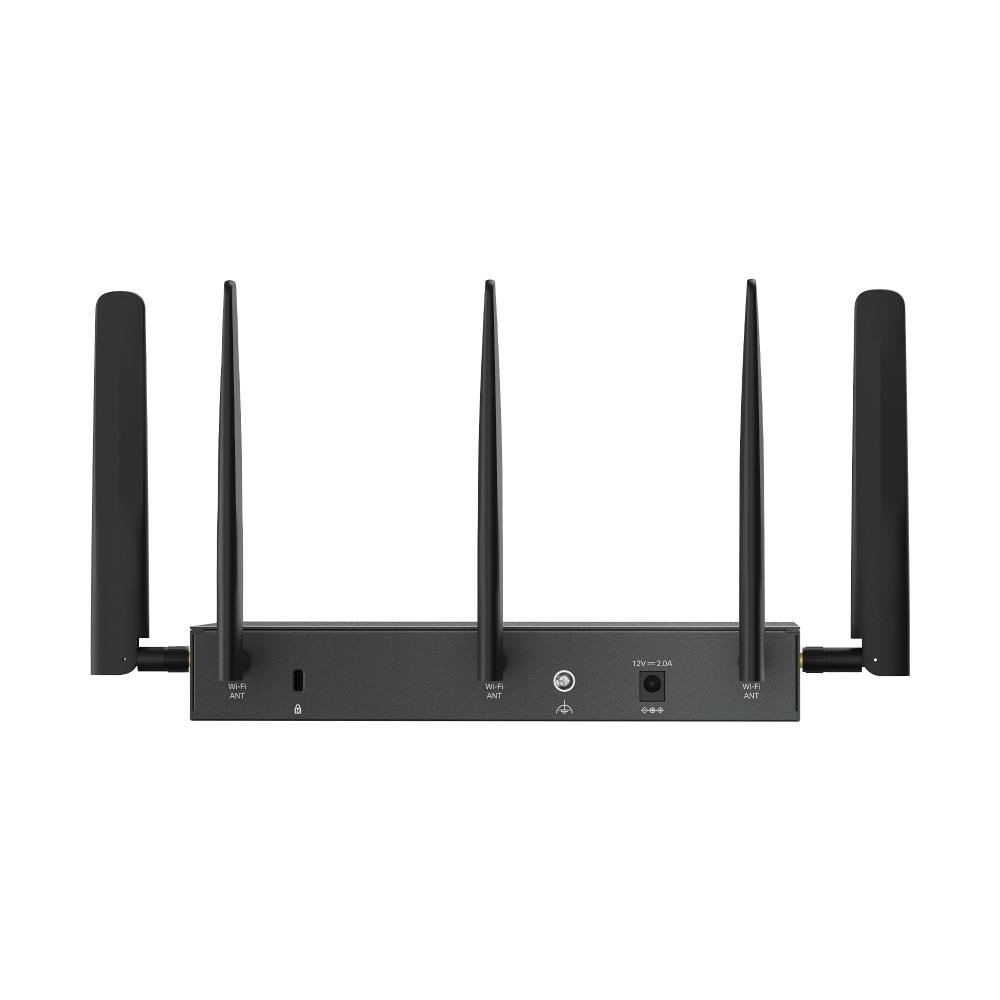

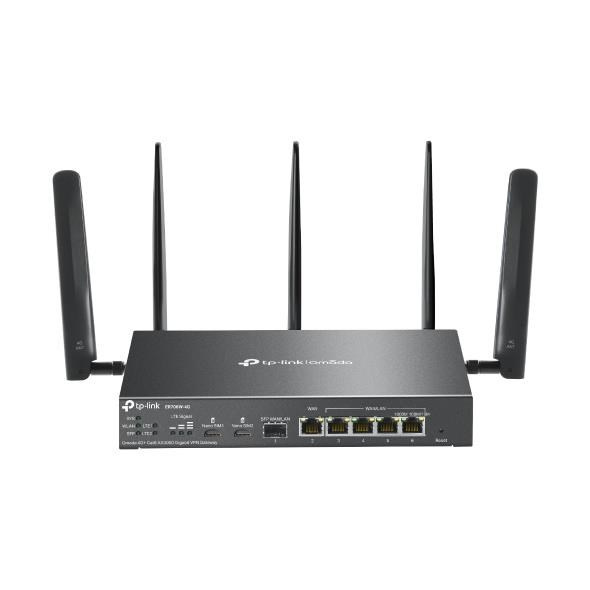

TP-Link ER706W-4G OMADA VPN 4G+Cat6 router (AX3000,1xSFP WAN/LAN,1xGbEWAN,4xGbELAN/WAN,1xnanoSIM)
Kód:
438993
EAN:
4895252500714
Záruka:
60 Měsíc(ů)
Popis a parametre
TP-Link ER706W-4G OMADA VPN 4G+Cat6 router (AX3000,1xSFP WAN/LAN,1xGbEWAN,4xGbELAN/WAN,1xnanoSIM)
TP-Link ER706W-4G
Gigabitový VPN router Omada 4G+ Cat6 AX3000
- Podpora 4G+ Cat6:Vložte kartu Nano SIM a využívejte rychlost až 300 Mb/s.
- Dvoupásmový router s Wi-Fi 6 AX3000: Podporuje 2402 Mb/s na frekvenci 5 GHz a 574 Mb/s na frekvenci 2,4 GHz
- 6 gigabitových ethernetových portů: Poskytují vysokorychlostní kabelové připojení.
- 5 odnímatelných antén s vysokým ziskem:: Rozšiřují a koncentrují signály Wi-Fi.
- Centralizovaná správa:: Cloudový přístup a aplikace Omada pro snadnou správu.
- Omada Mesh: Bezproblémové připojení k zařízením EAP, která podporují technologii mesh.
- Vysoce zabezpečená síť VPN: Podporuje sítě IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
Learn more about Omada Cloud SDN
https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er706w-4g/>
Technické specifikace
| 4G | |
| Network Type | LTE Band of EU: |
| LTE Band of EU: | • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) |
| • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) | |
| Carrier Aggregation of EU: | Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| LTE Band of US: | LTE Band of US: • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) • 4G LTE-TDD: B41/B48 (2500/3600 MHz) |
| Carrier Aggregation of US: | Carrier Aggregation of US: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps; • Uplink: 50 Mbps |
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering† • URL Filtering • Web Security† |
| ARP Inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: Two 4.0dBi omnidirectional detachable antennas |

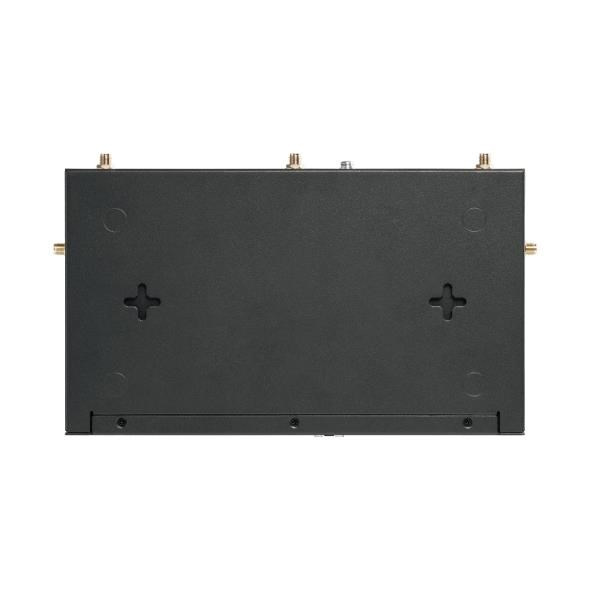

| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | EU: 15.4W US: 17.3W |
| PERFORMANCE | |
| GRE | • Unencrypted: 545.3Mbps • Encrypted: 282.6Mbps |
| WireGuard VPN | 387.7Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 5,1 |
| NAT (Static IP) | 947.1Mbps / 940.1Mbps |
| NAT(DHCP) | 949.2Mbps / 941.1Mbps |
| NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
| NAT (L2TP) | 875.4Mbps / 892.0Mbps |
| NAT (PPTP) | 881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps • ESP-SHA256-AES256: 654.4Mbps • ESP-SHA384-AES256: 646.5Mbps • ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | • Unencrypted: 990.0Mbps • Encrypted: 475.0Mbps |
| PPTP VPN Throughput | • Unencrypted: 1177.9Mbps • Encrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
| WIRELESS FEATURES | |
| Advanced Functions | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP† • OSPF† |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)? • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)? • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)? • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP |
| MANAGEMENT | |
| Omada App | Yes. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER706W-4G • Power Adapter • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
ParametrePridať do porovnania
Počet portů LAN
4
USB port
Ne
Gigabit ethernet
Ano
Další vlastnosti
VLAN
Další vlastnosti
Podpora IPv6
Další vlastnosti
FTP server
Další vlastnosti
Management
Další vlastnosti
Podpora 4G/LTE
Funkce
Router
Funkce
VPN
Podporované standardy
802.11a
Podporované standardy
802.11ac
Podporované standardy
802.11b
Podporované standardy
802.11g
Podporované standardy
802.11n
Podporované standardy
802.11ax
Slot na SIM kartu
Ano
Přenosová rychlost Wi-Fi (Mb/s)
2917 - 4000
Typ antény
Odnímatelná
Počet SFP portů
1
Počet portů LAN
4
Počet SFP portů
1
