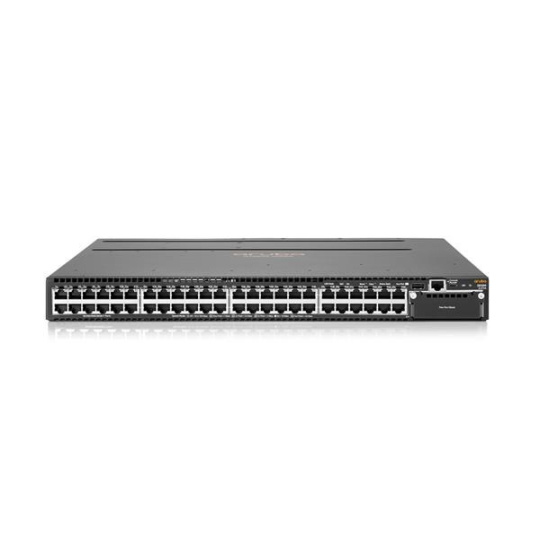

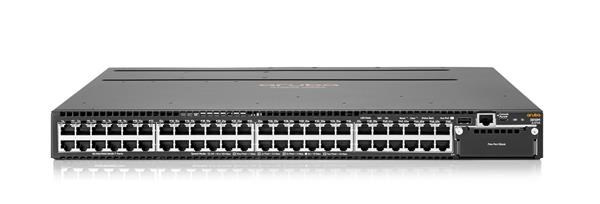

Aruba 3810M 48G 1-slot Switch JL072A

Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet + 10 GbE porty.... viac
Bežná cena: 1 305.77 EUR (-12%)
959.07 EUR bez DPH
Na dotaz
1 150.88 EUR
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Popis a parametre

Aruba 3810M 48G 1-slot Switch JL072A

Aruba 3810M 48G 1-slot Switch JL072A

48 RJ-45 autosensing 10/100/1000 ports
1 open stacking module slot
1 open uplink module slot
1 Power Supply required (Max 2)
1U - Height

Aruba 3810M 48G 1-slot Switch (JL072A)

Included accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec

1 open module slot

Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Additional ports and slots

1 stacking module slot

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 dual-personality (RJ-45 or USB micro-B)

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JL088A

1 fan tray slot

Switch ships with 1 JL088A fan tray installed. Spares ordered separately.

Physical characteristics

Dimensions

17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)

Weight

13.20 lb (5.99 kg)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card

Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

IPv6 Ready Certified

1000 Mb Latency

< 2.8 µs (FIFO 64-byte packets)

10 Gbps Latency

< 1.8 µs (FIFO 64-byte packets)

40 Gbps Latency

< 1.5 µs (FIFO 64-byte packets)

Throughput

up to 190.5 Mpps (64-byte packets)

Routing/Switching capacity

320 Gbps

Switch fabric speed

338 Gbps

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

64000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

15% to 95% @ 104°F (40°C), noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 38 dB, Pressure: 21.8 dB

Primary Airflow Direction

Front-to-side and front-to-rear

Electrical Characteristics

Frequency

50/60Hz

Voltage

JL085A PSU: 100-127/200-240 VAC

Current

JL085A PSU (Each): 1A/0.5A

Max/Idle Power Rating (Switch+ 1 PSU)

95W/78W

Second PSU Power Adder

10W

Max/Idle Uplink Power Adder

JL078A: 4W/3W

JL079A: 7W/3W

JL081A: 4W/3W

JL083A: 11W/4W

Maximum Heat Dissipation *(Max Case)

395.56

PoE Power (Max Possible)

N/A

Notes:

­ Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product.

­ *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

Safety

EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Immunity

Generic

EN55022: 2010

EN

EN55024: 2010

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 kV/2 kV AC

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN61000-3-2:2006 +A1:2009 +A2:2009 Class A

Flicker

EN61000-3-3:2008

Management

Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

What's new

  • Powerful Aruba Layer 3 switch series with backplane stacking, low latency, resiliency and prgrammability for a better mobile-first campus experience.
  • HPE Smart Rate for high speed multi-gigabit capacity and PoE+ power.
  • Modular line rate 10GbE and 40GbE ports for wireless aggregation.
  • Full PoE+ on all 48 ports for power-hungry high-speed wireless APs.
  • Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central support.
  • Ready for the software defined network with REST APIs and OpenFlow support.

Features

Performance and Power for the Digital Workplace

  • The Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow.
  • HPE Smart Rate ports support multi-gigabit Ethernet speeds (1, 2.5, 5, and 10 gigabit Ethernet) on existing cabling for cost-effective and convenient network upgrades with no rip and replace of cabling.
  • Optimized for the digital workplace with unified management and security tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
  • Rightsizes deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor.
  • Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, robust QoS and policy-based routing are included with no software licensing. Built-in programmable and easy to use REST API interface provides configuration automation for Mobile-first campus networks.

Resiliency and High Availability You Can Depend On

  • The Aruba 3810 Switch Series is designed with a ProVision ASIC designed to enable the mobile campus with very low latency, increased packet buffering, and adaptive power consumption.
  • Backplane stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency. Up to ten Aruba 3810 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.
  • Dual hot-swappable power supplies provide power and allow swapping of modules on the fly to reduce impact on the network availability. More performance with selectable queue configurations and associated memory buffering that best meets requirements of prioritized network applications.
  • Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.
  • Uninterrupted switching and routing for improved application experience and enhanced L3 availability. Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.

Trusted Security with Unmatched Quality of Service

  • The Aruba 3810 Switch Series includes robust security and quality of services features to build a mobile campus network that meets corporate policies and compliance requirements.
  • Flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities for improved user experience.
  • Enhanced security and policy-driven application authentication with concurrent 802.1X, MAC and Web Authentication modes. Prevent unwanted traffic with advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection.
  • Powerful multilevel-access security controls, such as role-based management, configurable password complexity, RADIUS/TACACS+, and SSH for improved security and control change management access.
  • Tunneled Node to transport network traffic on a per-port basis to Aruba controller with authentication and network policies applied and enforced at the controller. Industry standard MACsec provides switch-to-switch link level security.

Simplify with Unified Management

  • The Aruba 3810 Switch Series supports Aruba ClearPass Policy Manager to provide unified and consistent policy between wired and wireless users. Simplified implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies on the network.
  • Supports Aruba AirWave and cloud-based Aruba Central to provide common platform for zero-touch provisioning, management, and monitoring for wired and wireless network devices.
  • Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
  • RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
  • Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
.
Provedení
Rack mounted 19"
Technologie
Gigabit Ethernet + 10 GbE porty
PoE budget (W)
Přenosová rychlost LAN (Mb/s)
Funkce
L3
Počet SFP portů
0
Počet PoE Out portů
0
Počet portů Combo
0
Počet SFP+ portů
4
Podporované standardy PoE
Žádný
Počet portů QSFP+
0
Počet portů LAN
0
Ventilátor
Ano
Počet portů SFP28
0
Počet portů QSFP28
0
Počet portů LAN
0
Počet PoE Out portů
0
Počet portů Combo
0
Počet SFP portů
0
Počet portů QSFP+
0
Počet SFP+ portů
4
PoE budget (W)
0
Počet portů QSFP28
0
Počet portů SFP28
0
